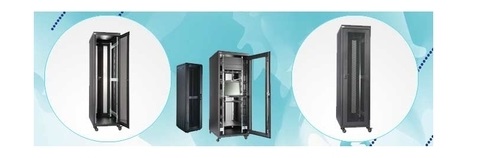

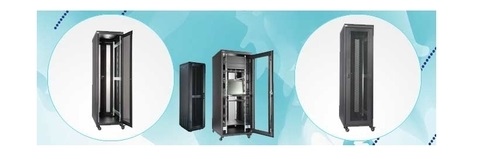

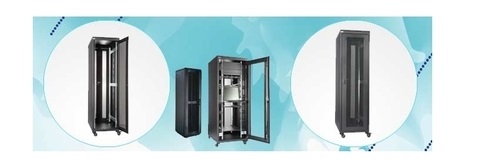

Prasha Server & Networking Racks
| Widths | 600 and 800 mm |
| Depths | 600, 800, 1000 and 1200 mm |
| Brand | Prasha |
| Overall Heights | 934 (h) |
| Usable Heights | 800 (h) |
| Basic Structure | Sheet Steel 2.0mm |
| Front Door | Sheet Steel 1.5 mm |
| Rear Door | Sheet Steel 1.5 mm |
| Side and Top Bottom Panels | Sheet Steel 1.2 mm |
| U Heights | 18 |
Prasha’s IT and Telecom racks have been designed to global standards and have been tropicallized to suit the conditions of Indian subcontinent. These racks conform to EIA/DIN standards and are geared to meet all professional requirements of the networking industry i-SER is Prasha’s next generation shelf enclosure solution influenced by 15 years of customer feedback addressing current IT market requirement for high density IT applications. i-SER provides a reliable rack-mounting environment for mission-critical equipment i-SER enclosures provide cooling, power distribution, cable management and environmental monitoring for applications in IT environments
Features:
- Strong steel construction
- Fully rigid welded structure of load rating up to 600kgs
- Conforms to DIN 414194 and 19” EIA standard engineering design
- 19”rail with “U” marking
- Baying and flexible assembly at site
- Rack design for better cool air circulation
- Single and split doors with screw fixed side panels
- Earthing safety of all rack assemblies
- Better rack balancing using castors and leveling feet
- Brush strip at cable entry on Top and Bottom, prevent dust particles
- Fan mounting provision for all-doors, bottom and sides
- Proper rated power strip for better current loading
Material & Finish: The structure is dully formed with CRCA steel, which ensures high rigidity and precision. The overall frame is welded and dimensions are maintained under strict monitoring processes. The entire cabinet is power coated to black shade (RAL 9004) after a – seven tank pre-treatment and oven baking for excellent durability
Scope of Supply
- Main Frame : 1 Nos.
- Cover Top : 1 Nos.
- Cover Bottom : 1 Nos.
- 19” Mounting Angles : 4 Nos.
- Depth Support Channel : 6 Nos.
Optional Accessories:
- Fan Tray Sliding
- Fans/Fan Tray Fixed
- Power Distribution Unit- Horizontal/Vertical
- Cable Manager – Horizontal/Vertical
- Fixed Shelf
- Sliding shelf
- Key board tray sliding
- Cantilever shelf
- Cabinet lamp
- Grounding bus bar
- Leveling feet
- Castors
- Mounting hardware
| Brand | Prasha |
| Widths | 600 and 800 mm |
| Depths | 600, 800, 1000 and 1200 mm |
| Overall Heights | 1111 (h) |
| Usable Heights | 978 (h) |
| U Heights | 22 |
| Basic Structure | Sheet Steel 2.0mm |
| Front Door | Sheet Steel 1.5 mm |
| Rear Door | Sheet Steel 1.5 mm |
| Side and Top Bottom Panels | Sheet Steel 1.2 mm |
Prasha’s IT and Telecom racks have been designed to global standards and have been tropicallized to suit the conditions of Indian subcontinent. These racks conform to EIA/DIN standards and are geared to meet all professional requirements of the networking industry i-SER is Prasha’s next generation shelf enclosure solution influenced by 15 years of customer feedback addressing current IT market requirement for high density IT applications. i-SER provides a reliable rack-mounting environment for mission-critical equipment i-SER enclosures provide cooling, power distribution, cable management and environmental monitoring for applications in IT environments
Features:
- Strong steel construction
- Fully rigid welded structure of load rating up to 600kgs
- Conforms to DIN 414194 and 19” EIA standard engineering design
- 19”rail with “U” marking
- Baying and flexible assembly at site
- Rack design for better cool air circulation
- Single and split doors with screw fixed side panels
- Earthing safety of all rack assemblies
- Better rack balancing using castors and leveling feet
- Brush strip at cable entry on Top and Bottom, prevent dust particles
- Fan mounting provision for all-doors, bottom and sides
- Proper rated power strip for better current loading
Material & Finish: The structure is dully formed with CRCA steel, which ensures high rigidity and precision. The overall frame is welded and dimensions are maintained under strict monitoring processes. The entire cabinet is power coated to black shade (RAL 9004) after a – seven tank pre-treatment and oven baking for excellent durability
Scope of Supply
- Main Frame : 1 Nos.
- Cover Top : 1 Nos.
- Cover Bottom : 1 Nos.
- 19” Mounting Angles : 4 Nos.
- Depth Support Channel : 6 Nos.
Optional Accessories:
- Fan Tray Sliding
- Fans/Fan Tray Fixed
- Power Distribution Unit- Horizontal/Vertical
- Cable Manager – Horizontal/Vertical
- Fixed Shelf
- Sliding shelf
- Key board tray sliding
- Cantilever shelf
- Cabinet lamp
- Grounding bus bar
- Leveling feet
- Castors
- Mounting hardware
| Widths | 600 and 800 mm |
| Depths | 600, 800, 1000 and 1200 mm |
| Brand | Prasha |
| U Heights | 42 |
| Overall Heights | 2000 (h) |
| Usable Heights | 1867 (h) |
| Basic Structure | Sheet Steel 2.0mm |
| Front Door | Sheet Steel 1.5 mm |
| Rear Door | Sheet Steel 1.5 mm |
| Side and Top Bottom Panels | Sheet Steel 1.2 mm |
Prasha’s IT and Telecom racks have been designed to global standards and have been tropicallized to suit the conditions of Indian subcontinent. These racks conform to EIA/DIN standards and are geared to meet all professional requirements of the networking industry i-SER is Prasha’s next generation shelf enclosure solution influenced by 15 years of customer feedback addressing current IT market requirement for high density IT applications. i-SER provides a reliable rack-mounting environment for mission-critical equipment i-SER enclosures provide cooling, power distribution, cable management and environmental monitoring for applications in IT environments
Features:
- Strong steel construction
- Fully rigid welded structure of load rating up to 600kgs
- Conforms to DIN 414194 and 19” EIA standard engineering design
- 19”rail with “U” marking
- Baying and flexible assembly at site
- Rack design for better cool air circulation
- Single and split doors with screw fixed side panels
- Earthing safety of all rack assemblies
- Better rack balancing using castors and leveling feet
- Brush strip at cable entry on Top and Bottom, prevent dust particles
- Fan mounting provision for all-doors, bottom and sides
- Proper rated power strip for better current loading
Material & Finish: The structure is dully formed with CRCA steel, which ensures high rigidity and precision. The overall frame is welded and dimensions are maintained under strict monitoring processes. The entire cabinet is power coated to black shade (RAL 9004) after a – seven tank pre-treatment and oven baking for excellent durability
Scope of Supply
- Main Frame : 1 Nos.
- Cover Top : 1 Nos.
- Cover Bottom : 1 Nos.
- 19” Mounting Angles : 4 Nos.
- Depth Support Channel : 6 Nos.
Optional Accessories:
- Fan Tray Sliding
- Fans/Fan Tray Fixed
- Power Distribution Unit- Horizontal/Vertical
- Cable Manager – Horizontal/Vertical
- Fixed Shelf
- Sliding shelf
- Key board tray sliding
- Cantilever shelf
- Cabinet lamp
- Grounding bus bar
- Leveling feet
- Castors
- Mounting hardware
