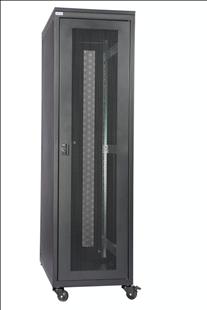

Server Rack
PRODUCT OVERVIEW:-
Prasha’s IT and Telecom racks have been designed to global standards and have been tropicallized to suit the conditions of Indian subcontinent. These racks conform to EIA/DIN standards and are geared to meet all professional requirements of the networking industry. Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standard under stringent ISO 9001-2008 Manufacturing & Quality management system to ensure highest quality product.
Prasha’s next generation shelf enclosure solution influenced by 15 years of customer feedback addressing current IT market requirement for high density IT applications, provides a reliable rack-mounting environment for mission-critical equipments.

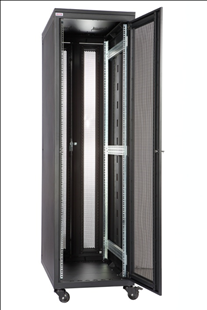

Standard for Racks configuration will be welded frame with 4 no Pillars of 5 folded profile welded to top and bottom ribbed/ reinforced frame additionally supported with depth-Member screwed up on the Frame profile. Associated with top cover with fan mounting provision Front perforated Metal Door with lock & key and Back Vented / perforated metal door with lock & key and Plain and fixed side panels (1200 deep rack will be configured with dual side panel.) Free standing on floor with 4 No castors wheels with 2 no with brakes and 2 Nos. without brakes & with Levellers Or Plinth.
Available in 42 RU Variants with 650, 800, 1000 & 1200 Deep configurations and 600 & 800 width configurations.
TECHNICAL SPECIFICATION:
| Technical Data | |
| Basic Frame | 5-Folded Steel/CRCA Profile |
| Construction | Welded |
| Top & Bottom Cover | Bolted to Frame with Cable entry exit cut outs & Gland plates |
| Front Door | Lockable and Interchangeable Door Perforated & With push-button lock system steel Door |
| Rear Door | Lockable Duel Steel Door – Perforated with 3-point Lock System |
| 19” Mounting Angle | Zinc plated highly strong Steel Mounting Rails |
| Std. Equipment Mounting | DIN Std. & EIA std. |
| Standard Finish | Powder coated-7-Tank Process |
| Standard Colour | Grey & Off white-RAL-7035 OR Black-RAL-9004 |
| Standard Mounting | Caster wheels (2 with Brake & 2 without Brake)OR Levellers Or Plinth |
| Rack Standard | Conforms to DIN 41494 & EIA standard |
| Static Load | 800 Kg with casters 1250 Kg with Levelers/Plinth |
| Model Matrix & Dimensions | ||||||
| Server Rack Series | H | h | W | w | D | d |
| 42U600X600 | 2092 | 42U | 600 | 19″ | 650 | 440 |
| 42U600X800 | 2092 | 42U | 600 | 19″ | 800 | 640 |
| 42U600X1000 | 2112 | 42U | 600 | 19″ | 1000 | 840 |
| 42U600X1200 | 2112 | 42U | 600 | 19″ | 1200 | 1040 |
Abbreviations : H – Overall height, h- Usable height, W – Overall width, w- Usable width, D – Overall depth, d- Usable=44.45MM
Note : Other models can be manufactured on request.
FEATURES:-
- Strong steel construction
- Fully rigid welded structure of load rating up to 800kgs
- Conforms to DIN 414194 and 19” EIA standard engineering design
- 19”rail with “U” marking
- Baying and flexible assembly at site
- Rack design for better cool air circulation
- Single and split doors with quick release side panels
- Earthing safety of all rack assemblies
- Better rack balancing using castors and levelling feet
- Grommets for Cable entry on Top and Bottom
- Fan mounting provision for all-doors, top & bottom
- Proper rated power strip for better current loading
