Wallmount series
PRODUCT OVERVIEW:-

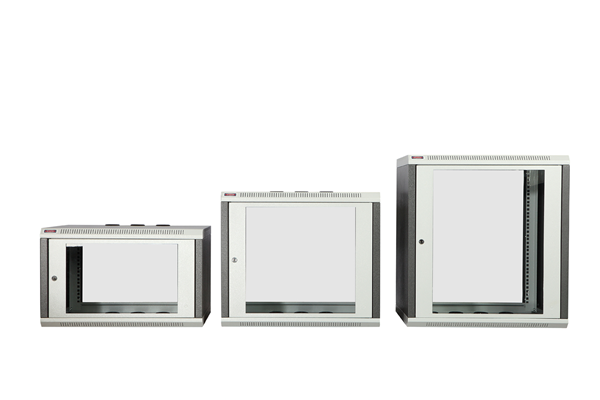

Prasha’s space saving wall mount cabinet is an ideal solution for securing smaller networking equipments. These enclosures are specifically designed for networking Professionals to securely store and wire 19”EIA compatible equipments.
These small racks are quite useful where a full sized cabinet will not fit or block air flow. They find application in housing network wiring hubs, audio-video equipment, router switches and patch panels. Typical applications include small hub and LAN application within wiring closets and computer rooms with floor space constraints. The enclosures are available in top and bottom cable management giving flexibility in wiring.
Standard for Racks configuration will be Bolted frame integrated with side panel and vented top cover with fan mounting provision, Associated Front Glass Door with lock & Key and provision to mount racks on wall and available from 4U to 15U Variants with 400& 500 Deep configurations, available in CKD design..
TECHNICAL SPECIFICATION:-
| Technical Data | |
| Basic Frame | Steel |
| Construction | CKD (Completely knock down condition) |
| Top & Bottom Cover | Bolted to Frame with Cable entry exit cut outs |
| Front Door | Lockable Toughened Glass Door |
| 19” Mounting Angle | Formed Zinc-plated Steel |
| Std. Equipment Mounting | DIN Std./EIA Std. |
| Standard Finish | Powder coated-7-Tank Process |
| Standard Color | Grey & Off White OR Black |
| Rack Standard | Conforms to DIN 41494 & EIA standard |
| Static Load | 50Kg |
| Model Matrix & Dimensions | ||||||
| WM-400 Series | H | h | W | w | D | d |
| 4U/575X400 | 266 | 4U | 575 | 19″ | 400 | 300 |
| 6U/575X400 | 355 | 6U | 575 | 19″ | 400 | 300 |
| 9U/575X400 | 489 | 9U | 575 | 19″ | 400 | 300 |
| 12U/575X400 | 622 | 12U | 575 | 19″ | 400 | 300 |
| 15U/575X400 | 756 | 15U | 575 | 19″ | 400 | 300 |
| WM-500 Series | H | h | W | w | D | d |
| 6U/575X500 | 355 | 6U | 575 | 19″ | 500 | 400 |
| 9U/575X500 | 489 | 9U | 575 | 19″ | 500 | 400 |
| 12U/575X500 | 622 | 12U | 575 | 19″ | 500 | 400 |
| 15U/575X500 | 756 | 15U | 575 | 19″ | 500 | 400 |

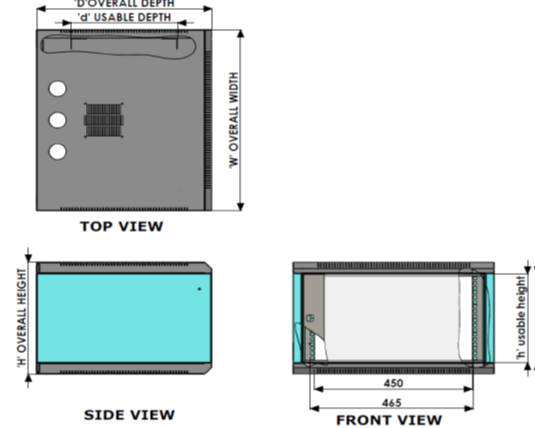

Abbreviations : H – Overall height, h- Usable height, W – Overall width, w- Usable width, D – Overall depth, d- Usable depth
1U = 44.45 MM
Note : Other models can be manufactured on request.
FEATURES:-
| HIGHLIGHTS Easy assembling format Strong mounting cage Flat packaging (completely knock down) Vent for better thermal management Best for small networking solution Easy to carry Extensive range of accessories Attractive prices offered on wall mount series | FEATURES Strong bolted CRCA construction Heights- 6U, 9U, 12U, 15U Widths – 575mm Depths options – 400mm and 500mm Front door – removable with glass Quick release door Adjustable front and rear rails Fan mounting option |
