Double-section Wallmount series
PRODUCT OVERVIEW:-

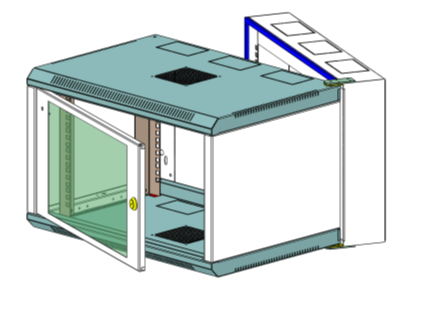

Prasha’s space saving Double section wall mount cabinet is an ideal solution for the management of networking equipments from both the sides i.e. front & rear, securing less time to operate and easy to access the rear equipments. These enclosures are specifically designed for networking Professionals to securely store and wire 19”EIA compatible equipments.
The welded frame construction adds rigidity to the structure. With top and bottom cable entry provision, these wall mount cabinets provide optimal flexibility for cable management. These small racks are quite useful where a full sized cabinet will not fit or block air flow.
Standard for Racks configuration will be Bolted frame integrated with side panel and vented top cover with fan mounting provision, Associated Front Glass Door with lock & Key and provision to mount racks on wall with 400& 500 Deep configurations, Front Section will be hinged to Back section with high quality hinges. Back section will have wall mounting provision. Front & Back section can be locked with lock & Key available from 6U to 15U Variants
available in CKD design..
TECHNICAL SPECIFICATION:-
| Technical Data | |
| Basic Frame | Steel |
| Construction | Welded assembled |
| Top & Bottom Cover | Welded to Frame with Cable entry exit cut outs |
| Front Door | Lockable Toughened Glass Door |
| 19” Mounting Angle | Formed Zinc-plated Steel |
| Wall-Frame | 100mm Deep |
| Standard Finish | Powder coated-7-Tank Process |
| Standard Color | Grey & Off White OR Black |
| Rack Standard | Conforms to DIN 41494 & EIA standard |
| Static Load | 50Kg |
Model Matrix & Dimensions WM-400 Series | H | h | W | w | D | d |
| 6U/575X400 | 380 | 6U | 575 | 19″ | 400 | 300 |
| 9U/575X400 | 514 | 9U | 575 | 19″ | 400 | 300 |
| 12U/575X400 | 647 | 12U | 575 | 19″ | 400 | 300 |
| 15U/575X400 | 781 | 15U | 575 | 19″ | 400 | 300 |
Abbreviations : H – Overall height, h- Usable height, W – Overall width, w- Usable width, D – Overall depth, d- Usable depth
1U = 44.45 MM
Note : Depth Part is accompanied with 100mm Wall-Frame
FEATURES:-
| HIGHLIGHTS Easy assembling format Strong mounting cage Flat packaging (completely knock down) Vent for better thermal management Best for small networking solution Easy to carry Extensive range of accessories Attractive prices offered on wall mount series | FEATURES Strong bolted CRCA construction Heights- 6U, 9U, 12U, 15U Widths – 575mm Depths options – 400mm +100mm Wall Frame Front door – removable with glass Quick release door Adjustable front and rear rails Fan mounting option |
