Open Racks

Overview:-

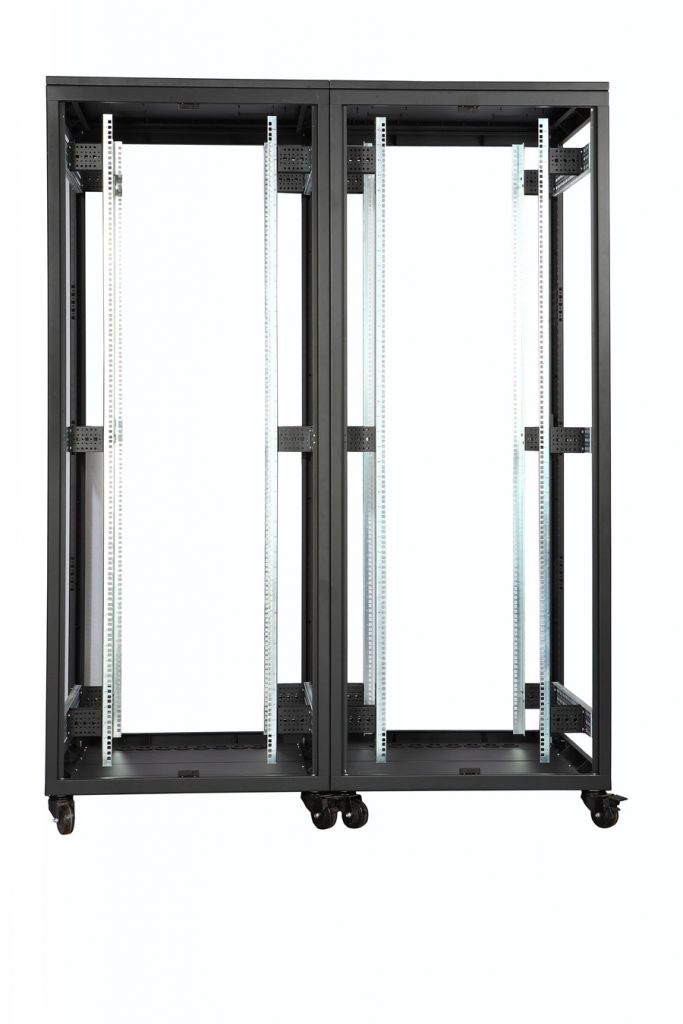

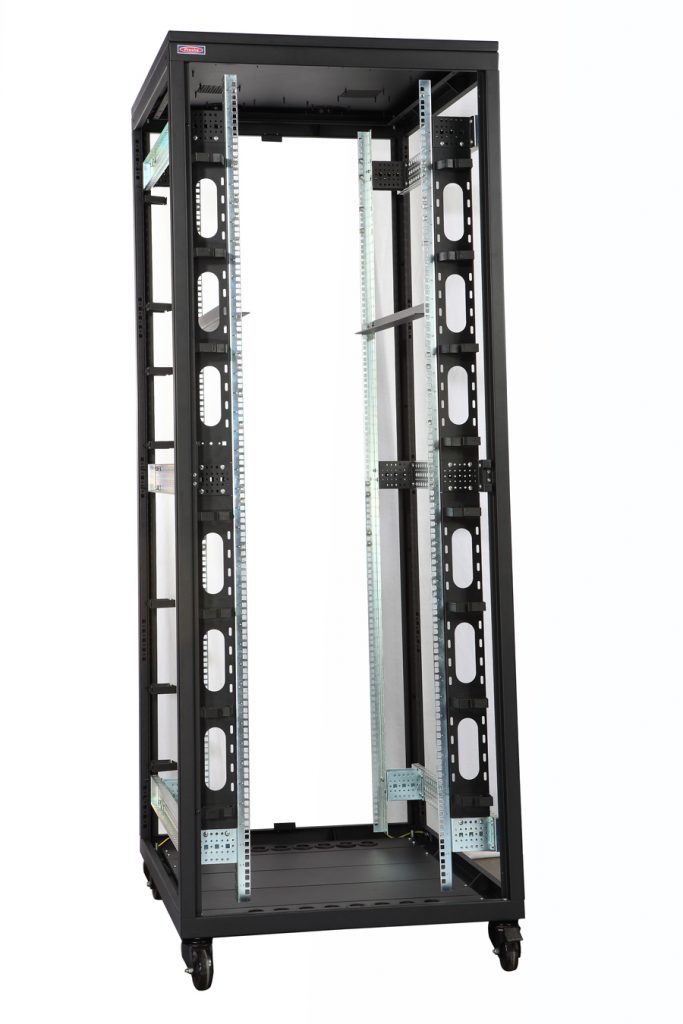

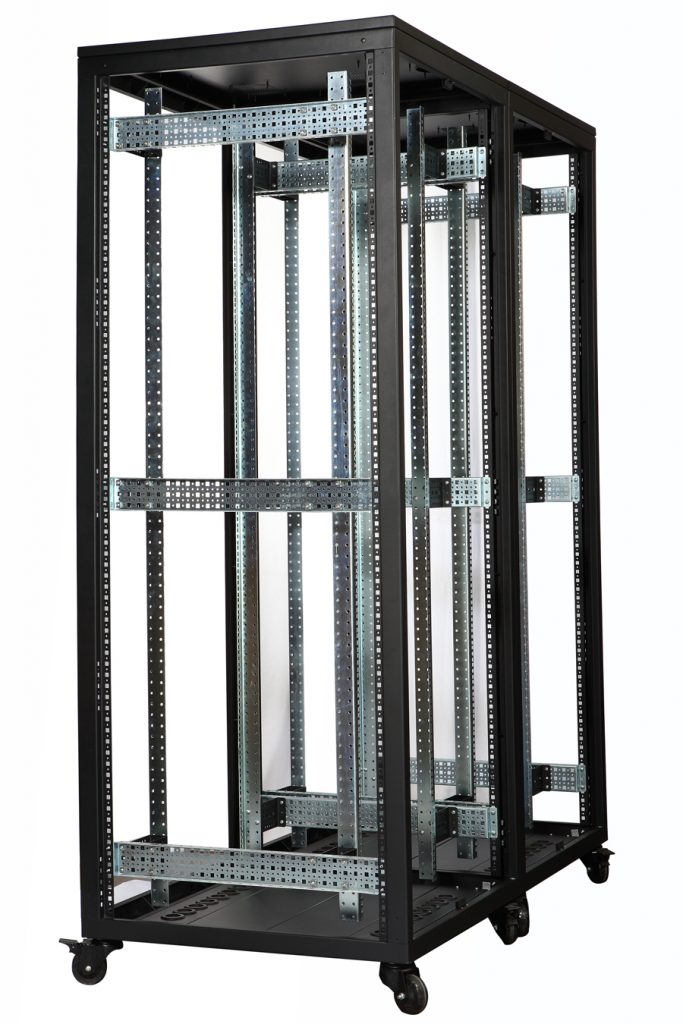

2-Post and 4-Post Open network rack are very useful for networking application, these rack are very rigid and strong CRCA construction that conform ISO certification and EIA-Standard.

These rack are form in welded structure for extra stiffness and rigidity with adjustable mounting rails with ‘U’ marking ,on the depth member for variable equipment settings and site requirement.

Available 36U, 42U and 45U, and so on.

Technical Data
Basic Frame	CRCA Section
Construction	welded Type
Std. Equipment Mounting	DIN Std. M6 Tapped Hole
Standard Finish	Powder coated with 7-Tank Process
Standard Colour	Grey & Off white OR Black
Standard Mounting	Grouting
Rack Standard	Conforms to ISO & EIA standard
Static Load	800 Kgs

Model Matrix & Dimensions
Open Rack	H	h	W	w
36U	1733	36U	600	19”
42U	2040	42U	600	19”
45U	2173	45U	600	19”

1U = 44.45 mm

Note: Other models can be manufactured on request.


S.no	Specification	Overall height ‘H’ (mm)	Usable Height ‘h’ (mm)	overall Width ‘W’ (mm)	Usable Width ‘w’ (mm)	Overall Depth ‘D’ (mm)	Usable Depth ‘d’ (mm)
1	36UHx600mmWx800mmD	1825	36U	600	19”	800	640
2	42UHx600mmWx800mmD	2092	42U	600	19”	800	640
3	45UHx600mmWx800mmD	2226	45U	600	19”	800	640
4	36UHx600mmWx1000mmD	1825	36U	600	19”	800	840
5	42UHx600mmWx1000mmD	2092	42U	600	19”	800	840
6	45UHx600mmWx1000mmD	2226	45U	600	19”	800	840
7	36UHx800mmWx800mmD	1825	36U	800	19”	800	585
8	42UHx800mmWx800mmD	2092	42U	800	19”	800	585
9	45UHx800mmWx800mmD	2226	45U	800	19”	800	585
10	36UHx800mmWx1000mmD	1825	36U	800	19”	800	785
11	42UHx800mmWx1000mmD	2092	42U	800	19”	800	785
12	45UHx800mmWx1000mmD	2226	45U	800	19”	800	785

Features:

Made of Heavy Duty CRCA Sections
Open architecture for easy access to cable and unrestricted air flow
Adjustable depth 650 to 850 mm to suite site conditions
Standard U marking for fast equipment mounting
Static Load 800Kgs

Ability to joint the rack frame with the provision additional plate mounting system
